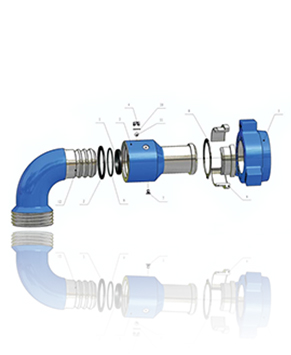

HIGH-PRESSURE ACTIVE ELBOW

HIGH-PRESSURE ACTIVE ELBOW

Technology specification：

The design meets the requirement of API SPEC 16C.

Nominal bore：1″~5″

Rated working pressure：5000~15000PSI

Rated working temp：K、L、P、R、S、T、U、V

Material class：AA, BB, CC, DD, EE、FF

Product specification level：PSL1~PSL4

Performance requirement level：PR1

Suitable medium：Petroleum, Natural gas, Mud、The Cementing、Fracturing Etc.

▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂

Specification 1"～4", rated working pressure 14～140MPa (2000psi～20000psi).

Movable elbow can two types: long radius and short radium.

◆ Uniform wall thickness, long service, favorable appearance and quality;

◆ It can effectively bear heavy load and radial load;

◆ All specifications are similar to those products of FMC;

◆ Seal elements adopt synthetic rubber, and it is equipped with metal blowout control ring, thus the security improved greatly.
