High pressure straight pipe

High pressure straight pipe

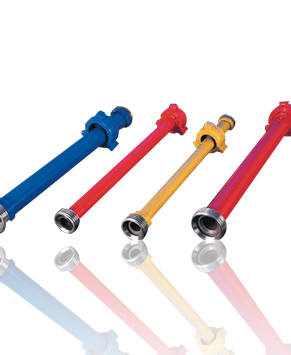

Our high pressure straight pipe (straight pipe assembly) has four types: pressure thread seal, non-pressure thread seal, integral type, welded type. Specification 1"～4", pressure value 7MPa～105MPa, length of pipeline 1m, 1.5m, 2m, 2.5m, 2.8m.

▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂▂

End connection form of pressure thread seal: FIG402Union, FIG602Union, FIG1002Union, FIG1502Union; rated working pressure 28MPa (4000psi)～105MPa (15000psi).

End connection form of non-pressure thread seal: FIG206Union, FIG602Union, FIG1002Union, FIG1502Union; rated working pressure14MPa (2000psi)～105MPa (15000psi).

End connection form of common integral type: FIG602Union, FIG1002Union FIG1502Union; rated working pressure 42MPa (6000psi)～105MPa (15000psi).

End connection form of anti-sulfur type: FIG602Union, FIG1002Union, FIG1502Union; rated working pressure 35MPa (5000psi)～70MPa (10000psi).

End connection form of welded union type: FIG402Union, metric trapezoidal thread union, FIG602 union, FIG1002 union, FIG1502 union; rated working pressure 28MPa (4000psi)～105MPa (15000psi).

End connection form of welded flange type: 21/16″ flange, 29/16″ flange, 31/8″ flange, 41/16″ flange, 31/16″ flange; rated working pressure 21MPa (3000psi)～105MPa (15000psi)。
