Integral connector

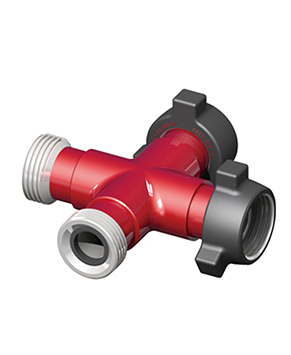

Integral connector

  • Classification:Integral connector
  • Date of issue:2021-01-12
24 hours free hotline:15365686988
  • Product overview

       Integral connector

  Technology specification:
  The design meets the requirement of API SPEC 16C.
  Nominal bore:2″~4″
  Rated working pressure:5000~15000PSI
  Rated working temp:K、L、P、R、S、T、U、V
  Material class:AA, BB, CC, DD, EE、FF
  Product specification level:PSL1~PSL4
  Performance requirement level:PR1
  Suitable medium: The cementing、Fracturing.

  Yancheng Youde production of high pressure integral joint and welding joint variety is complete, including Y, L, long radius elbow, tee, cross, manifold, tail seven, specifications 2 "to 4", 21 mpa pressure ~ 140 mpa (3000 psi - 20000 psi). Integral joint blank is made of high strength steel alloy forging forming, and through the overall heat treatment, not only improve the bearing strength of products, and also extend the service life, and the appearance is concise, end have union connection, easy to live with all sorts of fracturing well cementing equipment connection. The material and welding groove design of end welding joint are in accordance with the API6A specification.
  Variable diameter joint function is implemented in the pipeline of different diameters and different thread form size conversion connection, adopt high strength alloy steel forging, the nc machine tool refined but become, connection is simple and reliable.
